Product Overview

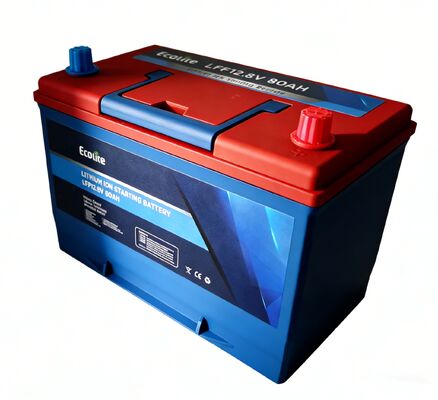

The ECOLITE LFP12-801500 is a high-performance LiFePO4 starter battery engineered specifically for demanding cranking applications. With 12.8V voltage, 80Ah capacity, and an impressive 1200A pulse discharge capability, it delivers reliable, instant starting power for cars, trucks, boats, and heavy equipment—all while weighing nearly 50% less than traditional lead-acid batteries. Designed for durability, speed, and safety, it represents the next generation of automotive and marine power solutions.
Key Advantages
Equipped with advanced LiFePO4 cells and an integrated Battery Management System (BMS), this battery ensures balanced performance and multi-layer protection. It maintains strong cranking output even at temperatures as low as -20°C, guaranteeing quick starts in cold conditions. With a cycle life exceeding 2000 cycles and support for rapid full charging in about 1 hour, it significantly reduces downtime and long-term ownership costs.
Specification
| Physical Characteristics | |
| Battery Voltage and Rate Capacity | 12.8V80Ah |
| Length | 306mm |
| Width | 174mm |
| Height | 200/220mm |
| PackingWeight | Approx. 12kg |
| BatteryWeight | Approx. 11.5 kg |
| Housing Material | ABS |
| Operating Conditions | |
| Standard Charge | CC/CV |
| MaxCharge Voltage | 16.4V |
| Discharge Cut-off Voltage | 15.6V |
| Recommended Charge Current | ≤40A |
| Max Charge Current | 100A |
| Discharge Cut-off Voltage | 8V |
| Max.Discharge Current | 200 A |
| Max.Pulse Discharge Current(3 Sec) | 1000A |
| Max.Charge Current | 1000A |
| Electrical Characteristics | |
| Nominal Voltage | 12.8 V |
| Rated Capacity | 80Ah |
| Resistance AC IR(1kHz) | <12mΩ |
| Watt-Hours(0.5C,25℃) | 1024 Wh |
| Cycle Life at DOD 100% (25 ℃) 1C Discharge/0.5C Charge(80%↑) |
2000 Cycles |
| Operating Temperature Range | |
| Charge Temperature | 0 ℃ / 55 ℃ |
| Discharge Temperature | -20 ℃ / 60 ℃ |
| Storage Temperature | 0 ℃ / 35 ℃ |
| BMS High Temperature Cut-off | 65℃ |
![]()
Performance Highlights
Pulse discharge current up to 1200A (≤1 second) for reliable cold cranking
Maximum charge current of 100A, enabling a full charge in approximately 1 hour
Wide operating temperature: Charge 0°C to 55°C, Discharge -20°C to 60°C
Lightweight design at only ~11.5 kg for easy handling and installation
Built-in BMS provides overcharge, over-discharge, short-circuit, and temperature protection
Typical Applications
Passenger cars, SUVs, and light trucks as a direct lead-acid replacement
Marine vessels including boats, yachts, and personal watercraft
ATVs, UTVs, off-road vehicles, and agricultural machinery
Classic cars and seasonal vehicles requiring long-term storage readiness
Commercial fleets and mobile emergency starting systems
Customization & Support
We offer tailored solutions to match specific voltage, capacity, dimension, connector, and communication protocol requirements. Our engineering team supports integration from prototype to production, ensuring seamless compatibility with your vehicle or equipment.
