Ecolite Slimline MAX 1408Wh All in One Power Station 1200W Inverter 110Ah LiFePO4

Product Overview

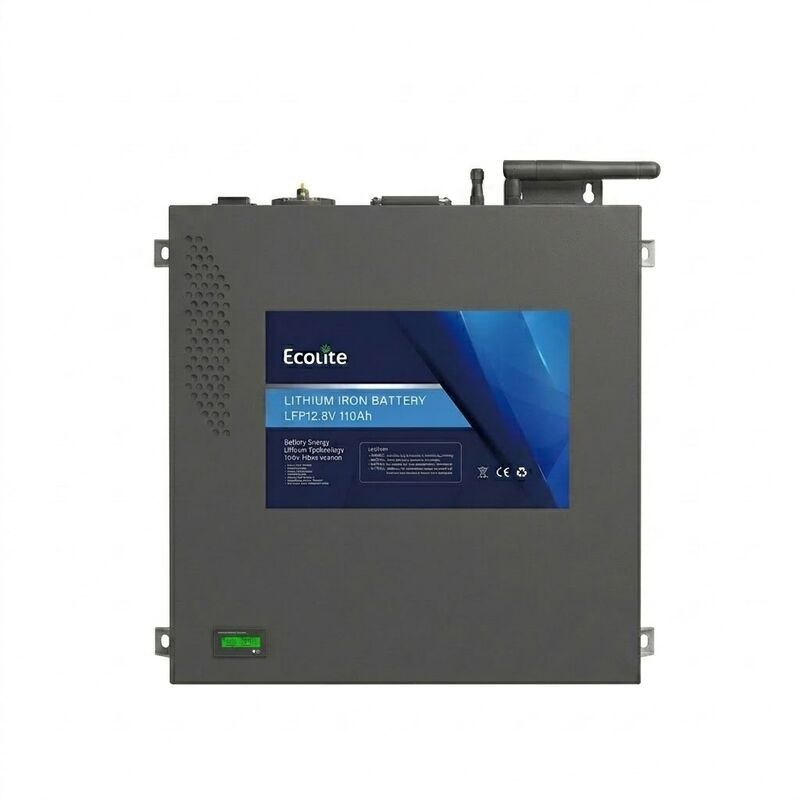

The Ecolite Slimline MAX is a fully integrated all in one lithium iron phosphate power station that combines a 110Ah battery pack with a built in 1200W pure sine wave inverter, AC/DC and DC/DC charging modules, and multiple output interfaces. It delivers 1408Wh of reliable energy in a slim space saving enclosure measuring 585 by 540 by 75 millimeters and weighing 22 kilograms. This unit is designed for RVs, marine applications, off grid living, and emergency backup, eliminating the need for external inverters or chargers.

All in One Integrated Design
Traditional battery systems require separate inverters, charge controllers, and complex wiring. The Slimline MAX integrates everything into one compact enclosure. The built in 1200W inverter powers AC loads directly. Internal AC/DC and DC/DC charging modules support three convenient charging methods alternator, solar panels, and AC mains. This streamlined approach simplifies installation, reduces system complexity, and saves valuable space in vehicles or tiny homes.

Built in 1200W Pure Sine Wave Inverter
The pure sine wave inverter delivers 1200W continuous output at AC 120V 60Hz, providing clean stable power for sensitive electronics, appliances, and power tools. Three AC outlets are conveniently located on the unit, allowing direct connection to TVs, laptops, refrigerators, fans, and other AC devices without additional equipment. Surge capacity handles motor startup loads for small refrigerators or pumps.

Three Charging Methods for Maximum Flexibility
Alternator charging connects to a vehicle alternator via the blue Anderson 50A connector, charging while driving with DC 11.5 to 16V at up to 30A. Solar charging integrates with solar panels via the red Anderson 50A connector, accepting DC 14 to 50V at up to 30A for renewable energy harvesting. AC mains charging plugs into standard wall outlets for convenient grid charging. The internal charging system automatically manages power sources, ensuring optimal charging efficiency and battery health.

High Capacity and Long Cycle Life
Delivering 1408Wh of usable energy with 110Ah capacity at 12.8V nominal voltage, the Slimline MAX powers essential appliances throughout the day. The LiFePO4 cells provide over 4000 cycles at 100 percent depth of discharge while retaining more than 80 percent of original capacity. This longevity outlasts traditional lead acid batteries by a wide margin, reducing replacement costs and waste.

Multiple Output Interfaces
The unit includes three AC outlets for 120V 60Hz pure sine wave power. A grey Anderson 175A connector provides DC 10 to 14.6V at up to 50A for high current DC loads.

Bluetooth Monitoring
Built in Bluetooth communication allows connection to a mobile app for real time monitoring of battery voltage, current, state of charge, temperature, and cycle count. Users can check system status from a smartphone or tablet, making it easy to track energy usage and plan recharging.

BMS Protection
The internal Battery Management System provides comprehensive protection including overcharge protection, over discharge protection, over current protection, short circuit protection, and temperature based cut off. BMS charge cut off voltage is 14.8V. Discharge cut off voltage is 10V with reconnect at 10.8V. Short circuit protection responds within 300 to 800 microseconds. Cell balancing ensures all four series cells remain at equal voltage for maximum cycle life.

Certifications

FAQ

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
