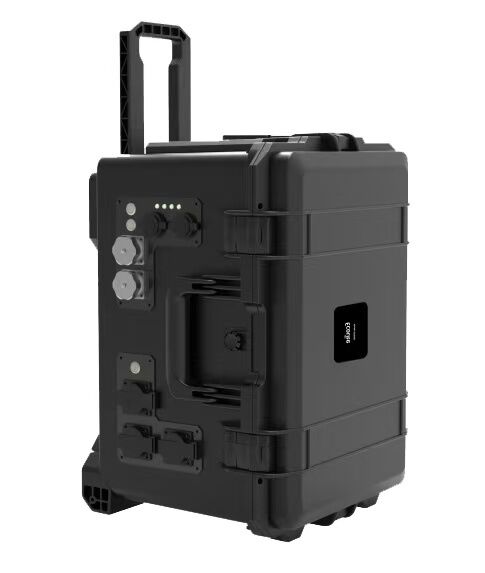

Deep Cycle LiFePO4 24V 200Ah 40kg ABS Case M8 Terminal Bluetooth Ready

Reliable 24V Power Source
This 25.6V 200Ah lithium iron phosphate battery provides 5120 watt hours of stored energy for 24 volt systems. It is built for daily deep discharging with a cycle life of 6000 cycles while keeping over 80 percent of its original capacity. The lightweight 40kg design makes installation easier than lead acid banks which weigh three times as much. An intelligent BMS handles all protection duties including overvoltage, undervoltage, overcurrent, short circuit, and temperature control.

Electrical Core Data
Nominal voltage sits at 25.6V with 200Ah usable capacity. Total energy reaches 5120Wh. Internal resistance stays below 20 milliohms for efficient power delivery. Round trip efficiency is 98 percent. Self discharge remains under 5 percent monthly. The internal cell arrangement is 8 series and 1 parallel. Dimensions are 520 by 269 by 220 millimeters. Terminal type is M8. The housing uses ABS plastic with IP65 rating against dust and water jets. Bluetooth is built in for wireless monitoring.

Discharge Strength
This battery delivers 200 amps continuously which can run a 4800 watt inverter at full load. Short pulses of 400 amps are allowed for less than one second to start motors or handle compressor surges. The BMS stops discharge at 20 volts and resumes at 21.6 volts. Short circuit protection acts in 100 to 400 microseconds.

Charging Flexibility
CC CV charging is required with voltage set between 28.4V and 29.2V. For float charging at full state of charge use 26.6V to 26.8V. Standard charge current is 100 amps for best cycle life. Maximum charge current is 200 amps for fast turnaround. The BMS cuts off charging at 29.6 volts.

Temperature Tolerance
You can discharge the battery from -20°C up to 60°C. Charging is allowed from 0°C to 60°C. For storage keep between -10°C and 35°C. The BMS will disconnect at 65°C to prevent overheating.

Bluetooth for Real Time Data
The integrated Bluetooth module pairs with a smartphone app. You can see voltage, current, state of charge, internal temperature, and total cycles. Set custom alerts for low battery or high temperature. No extra monitor is needed.
