Home /Products/LTO Battery Pack/48V 20.8Ah Lithium Titanate LTO Battery High Rate Charge ECOLTO-T4820

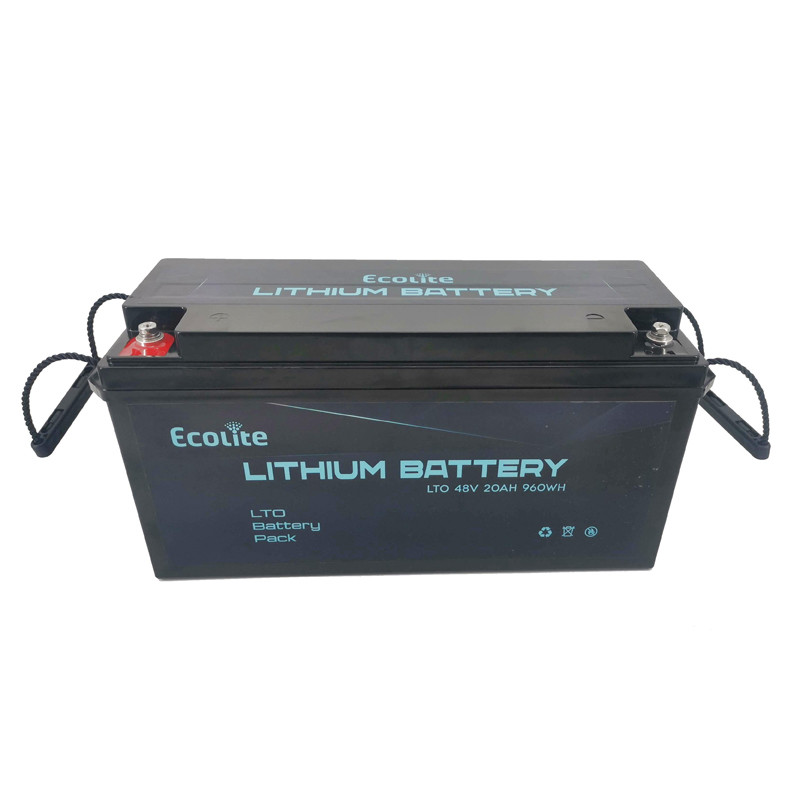

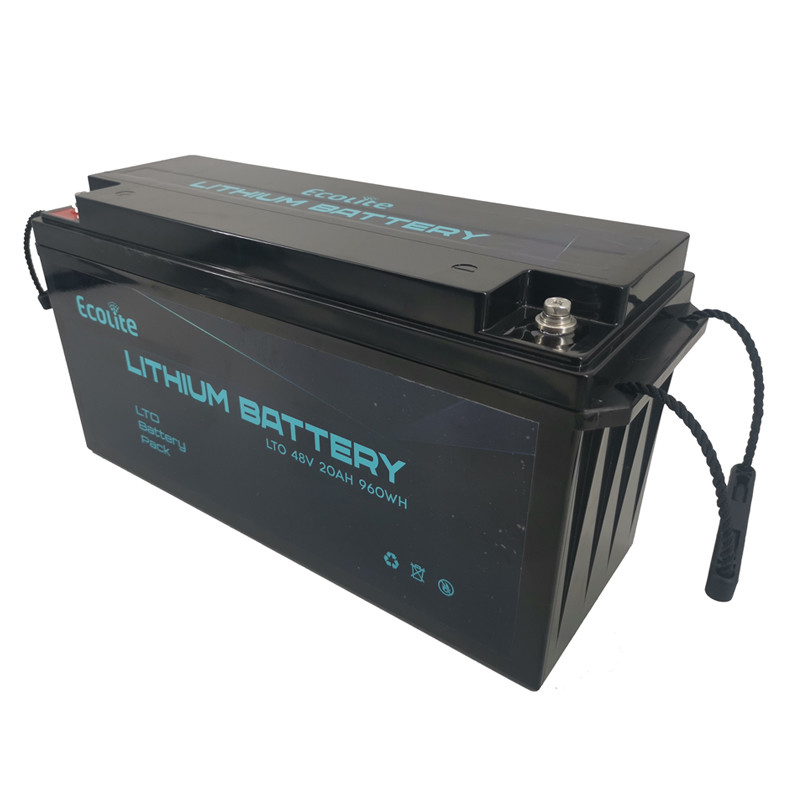

48V 20.8Ah Lithium Titanate LTO Battery High Rate Charge ECOLTO-T4820

1000pcs
MOQ
Inquiry
Price
48V 20.8Ah Lithium Titanate LTO Battery High Rate Charge ECOLTO-T4820
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 48V
Rated Capacity: 20.8Ah
Energy: 998.4Wh
Cycle Life: >10000cycles @1C,80% DOD
Self Discharge: 2% Per Month
Max. Modules In Series/Parallel: 20S/16P
Weight: 15kg
Housing Protection: IP65
Cell Type-Chemistry: LTO Cell
Highlight:

20.8Ah Lithium Titanate LTO Battery

,

48V Lithium Titanate LTO Battery
Basic Infomation
Place of Origin: China
Brand Name: Ecolite
Certification: UN38.3 MSDS CE
Model Number: ECOLTO-T4820
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 units/month
Product Description

ECOLTO-T4820 48V 20.8Ah

information
Start a Free Product Chat

48V 20.8Ah Lithium Titanate LTO Battery High Rate Charge ECOLTO-T4820 0 48V 20.8Ah Lithium Titanate LTO Battery High Rate Charge ECOLTO-T4820 1

ECOLTO-T4820
Lithium Titanate Battery
1)Quick Details
Lithium Titanate(LTO)48V20Ah
2)Features
low weight, high rate charge. super wide temperature range , long cycle times, green performance, most safety technology
3)Application
home energy storage system, emergency backup power system, solar home system

Product Parameter
Start a Free Product Chat

48V 20.8Ah Lithium Titanate LTO Battery High Rate Charge ECOLTO-T4820 2

Electrical Parameters Mechanical Parameters
Nominal Voltage 48V Dimension(L×W×H) 406x174x232mm
Rated Capacity 20.8Ah 15.98x6.85x9.13"
Energy 998.4Wh Weight 15kg
Resistance ≤ 12mΩ Terminal Type M8
Efficiency 0.99 Battery Housing ABS, 6FM120IL
Cycle Life >10000cycles @1C,80% DOD Housing Protection IP65
Self Discharge 2% per Month Cell Type-Chemistry LTO Cell
Max. Modules in Series/Parallel 20S/16P SOC Display(Optional) /
Discharge Parameters Charge Parameters
Continuous Discharge Current 20A Charge Method CC-CV
Pulse Discharge Current 60A (<6S) Charge Voltage 57V
Recommended Volt. Disconnect 30V Recommended Float Voltage 565V
BMS Discharge Cut-off Voltage 28V Recommended Charge Current 10A
Reconnect Voltage 34V Maximum Charge Current 20A
Short Circuit Protection 200-500us BMS Charge Cut-off Voltage 58V
Temperature Parameters
Discharge Temperature -40 to 60 ℃
Charge Temperature -40 to 60 ℃
Storage Temperature -40 to 60℃
BMS High Temperature Cut-off 70 ℃

BATTERY DATA SHEET





Tag:

Lithium Titanate Battery Pack

Lithium Titanium Oxide Batteries

20.8Ah Lithium Titanate LTO Battery
