Home /Products/LTO Battery Pack/ECOLTO-T6015 60V 15.6Ah Lithium Titanate Battery High Current Free Maintenance

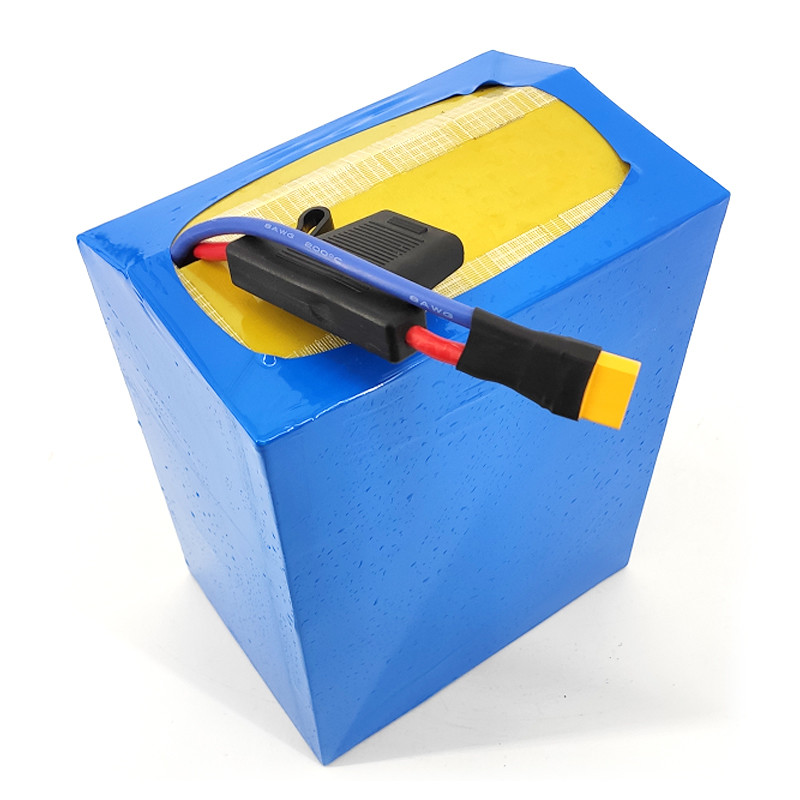

ECOLTO-T6015 60V 15.6Ah Lithium Titanate Battery High Current Free Maintenance

1000pcs
MOQ
Inquiry
Price
ECOLTO-T6015 60V 15.6Ah Lithium Titanate Battery High Current Free Maintenance
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 60V
Rated Capacity: 15.6Ah
Energy: 936Wh
Resistance: ≤ 40mΩ
Efficiency: 0.99
Cycle Life: >10000cycles @1C,80% DOD
Self Discharge: 2% Per Month
Max. Modules In Series/Parallel: 1P/25S
Highlight:

60V Lithium Titanate Battery

,

15.6Ah Lithium Titanate Battery
Basic Infomation
Place of Origin: China
Brand Name: Ecolite
Certification: UN38.3 MSDS CE
Model Number: 60V15.6Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 units/month
Product Description

ECOLTO-T6015

information
Start a Free Product Chat

ECOLTO-T6015 60V 15.6Ah Lithium Titanate Battery High Current Free Maintenance 0 ECOLTO-T6015 60V 15.6Ah Lithium Titanate Battery High Current Free Maintenance 1

ECOLTO-T6015
Lithium Titanate Battery
1)Quick Details
Lithium Titanate(LTO)60V15.6Ah
2)Features
free maintenance, fast charging , high current , high denisity , life life time, safe technology
3)Application
e-bike, electric-motorcycle, two-three wheelers

Product Parameter
Start a Free Product Chat

ECOLTO-T6015 60V 15.6Ah Lithium Titanate Battery High Current Free Maintenance 2

Electrical Parameters Mechanical Parameters
Nominal Voltage 60V Dimension(L×W×H) 205x142x278mm
Rated Capacity 15.6Ah 8.07x5.59x10.94"
Energy 936Wh Weight 13.5kg
Resistance ≤ 40mΩ Terminal Type XT90 to 120AAnderson
Efficiency 0.99 Battery Housing Epoxy board+PVC
Cycle Life >10000cycles @1C,80% DOD Housing Protection IP20
Self Discharge 2% per Month Cell Type-Chemistry LTO Cell
Max. Modules in Series/Parallel 1P/25S SOC Display(Optional) /
Discharge Parameters Charge Parameters
Continuous Discharge Current 75A Charge Method CC-CV
Pulse Discharge Current 100A(<3S) Charge Voltage 68.75~71.25V
Recommended Volt. Disconnect 37.5V Recommended Float Voltage 68.75V
BMS Discharge Cut-off Voltage 42.5V Recommended Charge Current 15A
Reconnect Voltage 50V Maximum Charge Current 45A
Short Circuit Protection 200-500us BMS Charge Cut-off Voltage 71.25V
Temperature Parameters
Discharge Temperature -40 to 60 ℃
Charge Temperature -40 to 60 ℃
Storage Temperature -10 to 35℃
BMS High Temperature Cut-off 75 ℃

BATTERY DATA SHEET
