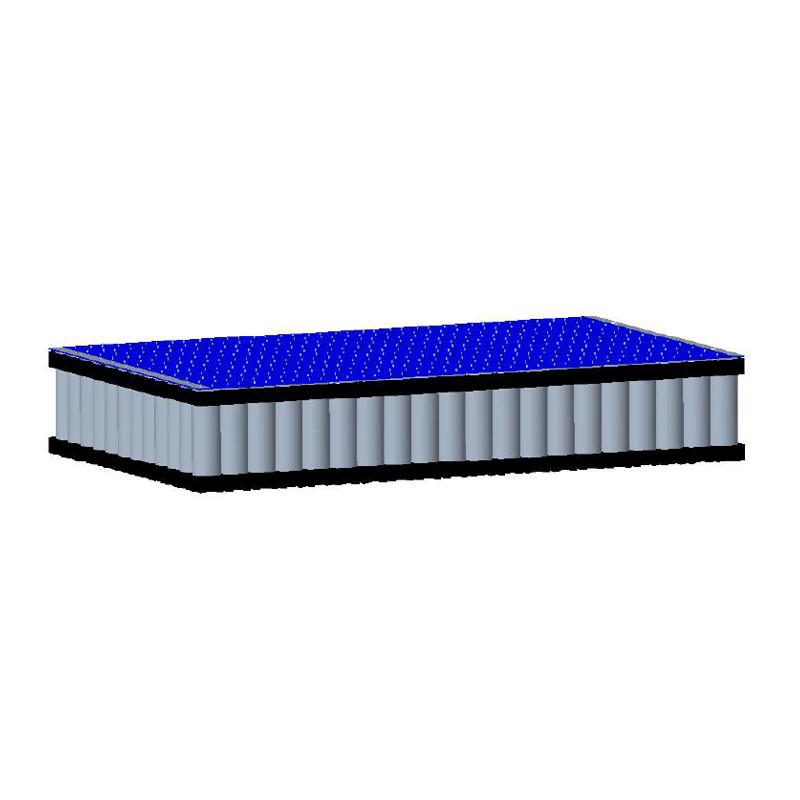

Fast Charging 48V 15Ah Lithium Ion Battery Green Power LTO Li Ion Battery

Name: Fast Charging 48V 15Ah Lithium Ion Battery Green Power LTO Li Ion Battery
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 48V 15Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 48V 15Ah

Payment & Shipping Terms

Minimum Order Quantity: 2000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      48V 15Ah Lithium Ion Battery, Fast Charging Lto Lithium Ion Battery, 48V Lto Lithium Ion Battery


Weight:	12KG	Chemistry:	Lithium-ion
Operating Temperature:	-40°C To 60°C	Cycle Life:	Up To 10,000 Cycles
Charge Rate:	1C	Capacity:	15.6Ah

Weight:	12KG
Chemistry:	Lithium-ion
Operating Temperature:	-40°C To 60°C
Cycle Life:	Up To 10,000 Cycles
Charge Rate:	1C
Capacity:	15.6Ah

Description

Fast Charging 48V 15Ah Lithium Ion Battery Green Power LTO Li Ion Battery

Fast Charge Green Power LTO Li-Ion Battery 48v 15Ah

BATTERY DATA SHEET
Electrical Parameters		Mechanical Parameters
Nominal Voltage	48V	Dimension(LxWxH)	380x230x90mm
Rated Capacity	15.6Ah	Dimension(LxWxH)	14.96x9.06x3.54"
Energy	748.8Wh	Weight	12kg
Resistance	≤12mΩ	Terminal Type	/
Efficiency	0.99	Battery Housing	Epoxy board , PVC
Cycle Life	>10000cycles @1C,80% DOD	Housing Protection	IP40
Self Discharge	2% per Month	Cell Type-Chemistry	LTO Cell
Max. Modules in Series/Parallel	12P/20S	sOC Display(Optional)	LCD

Discharge Parameters		Charge Parameters
Continuous Discharge Current	10A	Charge Method	CC-CV
Pulse Discharge current	30A(<6s)	Charge Voltage	56V
Recommended Volt. Disconnect	30V	Recommended Float Voltage	54V
BMS Discharge Cut-off Voltage	28V	Recommended charge Current	5A
Reconnect Voltage	34V	Maximum charge Current	8A
Short Circuit Protection	200-500uS	BMs Charge Cut-off Voltage	58V

Temperature Parameters
Discharge Temperature		-40 to 60℃
Charge Temperature		-40 to 60 ℃
Storage Temperature		-20 to 45℃
BMS High Temperature Cut-off		70 ℃

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
