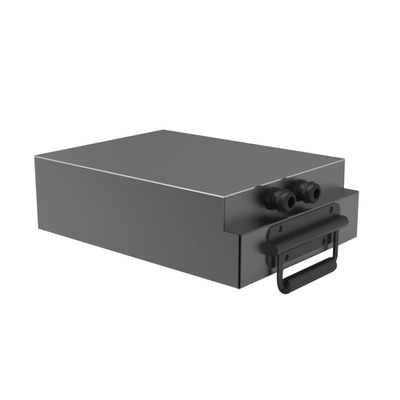

Solar Tracker LTO Battery Pack 24v 15Ah With BMS 200 - 500us Short Circuit Protection

Name: Solar Tracker LTO Battery Pack 24v 15Ah With BMS 200 - 500us Short Circuit Protection
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 24v 15Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 24v 15Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Tracker LTO Battery Pack, LTO Battery Pack 15Ah, LTO Solar Battery 24v


Nominal Voltage:	24V	Rated Capacity:	15.6Ah
Energy:	374.4Wh	Resistance:	≤ 16.7mΩ
Efficiency:	0.99	Cycle Life:	>10000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	12P/10S
Continuous Discharge Current:	50A	Pulse Discharge Current:	280A （<1s）
Recommended Volt. Disconnect:	15V	BMS Discharge Cut-off Voltage:	14V
Reconnect Voltage:	17V	Short Circuit Protection:	200-500us

Nominal Voltage:	24V
Rated Capacity:	15.6Ah
Energy:	374.4Wh
Resistance:	≤ 16.7mΩ
Efficiency:	0.99
Cycle Life:	>10000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	12P/10S
Continuous Discharge Current:	50A
Pulse Discharge Current:	280A （<1s）
Recommended Volt. Disconnect:	15V
BMS Discharge Cut-off Voltage:	14V
Reconnect Voltage:	17V
Short Circuit Protection:	200-500us

Description

Solar Tracker LTO Battery Pack 24v 15Ah With BMS 200 - 500us Short Circuit Protection

Solar Tracker LTO Battery 24v 15Ah With BMS

HYLN24- 15(24V15.6Ah)

BATTERY DATASHEET

Electrical Parameters

Mechanical Parameters

Nominal Voltage

24V

Dimension(L×W×H)

275x200x81mm

Rated Capacity

15.6Ah

10.83x7.87x3.19"

Energy

374.4Wh

Weight

7 kg

Resistance

≤ 16.7mΩ

Terminal Type

PG19

Efficiency

0.99

Battery Housing

Metal

Cycle Life

>10000cycles @1C,80% DOD

Housing Protection

IP65

Self Discharge

2% per Month

Cell Type-Chemistry

LTO Cell

Max. Modules in Series/Parallel

12P/10S

SOC Display(Optional)

Discharge Parameters

Charge Parameters

Continuous Discharge Current

50A

Charge Method

CC-CV

Pulse Discharge Current

280A (<1s)

Charge Voltage

28V

Recommended Volt. Disconnect

15V

Recommended Float Voltage

27.5V

BMS Discharge Cut-off Voltage

14V

Recommended Charge Current

Reconnect Voltage

17V

Maximum Charge Current

15A

Short Circuit Protection

200-500us

BMS Charge Cut-off Voltage

29V

Temperature Parameters

Discharge Temperature

-40 t o 60℃

Charge Temperature

-40 to 60 ℃

Storage Temperature

-20 to 45℃

BMS High Temperature Cut-off

70 ℃

Lto battery, Solar battery

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
