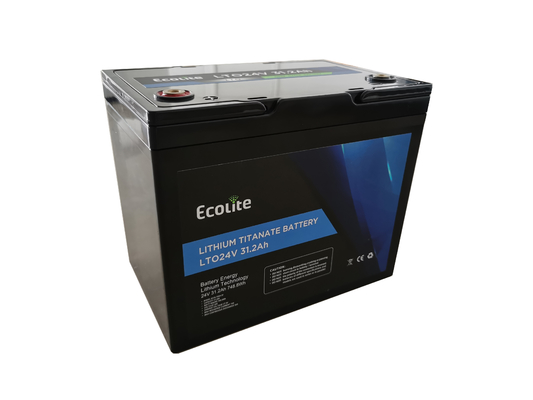

Ecolite LTO Battery Pack 24V 31.2Ah Lithium Titanate Battery Pack For UPS System

Name: Ecolite LTO Battery Pack 24V 31.2Ah Lithium Titanate Battery Pack For UPS System
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LTO24-30
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Model Number: LTO24-30

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  31.2Ah Lithium Titanate Battery Pack, LTO Battery Pack 24V


Nominal Voltage:	24V	Rated Capacity:	31.2Ah
Energy:	748.8Wh	Resistance:	≤12mΩ
Efficiency:	≥0.99	Cycle Life:	>10000cycles @1C,80% DOD
Self Discharge:	<2% Per Month	Dimension（W×D×H）:	260×168×209mm
Weight:	11kg

Nominal Voltage:	24V
Rated Capacity:	31.2Ah
Energy:	748.8Wh
Resistance:	≤12mΩ
Efficiency:	≥0.99
Cycle Life:	>10000cycles @1C,80% DOD
Self Discharge:	<2% Per Month
Dimension（W×D×H）:	260×168×209mm
Weight:	11kg

Description

Ecolite LTO Battery Pack 24V 31.2Ah Lithium Titanate Battery Pack For UPS System

Ecolite LTO Battery Pack 24V31.2Ah Lithium Titanate Battery Pack For UPS System/Home Solar System

Features

Lithium Titanate(LTO):the Safest Lithium Technology.Integrated Battery Management System(BMS).

Performance

Long Cycle Life＞10000cycles@80％DOD.

High Density,High Discharge Current,High Temperature Range.

Low Weight,Free Maintenance.

Fast Charging.Environment Friendly.

Ecolite LTO Battery Pack 24V 31.2Ah Lithium Titanate Battery Pack For UPS System 0

Specifications

Electrical Parameters		Mechanical Parameters
Nominal Voltage	24V	Dimension(WxDxH)	260x168x209mm
Rated Capacity	31.2Ah	Dimension(WxDxH)	10.24 x6.61x8.23
Rated Energy	748.8Wh	Product Weight	11kg
Resistance	≤12mΩ	Terminal Type	M8
Efficiency	≥0.99	Battery Housing	ABS
Cycle Life	>10000cycles @1C,80% DOD	Housing Protection	IP65
Self Discharge	<2% per Month	Cell Type-Chemistry	LTO Cell
Cell in Series/Parallel	10S/24P	Communication	/

Discharge Parameters		Charge Parameters
Continuous Discharge Current	60A	Charge Method	CC-CV
Pulse Discharge Current	100A (<3S)	Charge Voltage	27.5-28.5V
Recommended Volt. Disconnect	15V	Recommended Float Voltage	27.5V
BMS Discharge Cut-off Voltage	17V	Recommended Charge Current	15A
Reconnect Voltage	20V	Maximum Charge Current	60A
Short Circuit Protection	200-500us	BMS Charge Cut-off Voltage	28.5V

Temperature Parameters
Discharge Temperature		-40℃ to 60℃
Charge Temperature		-40℃ to 60℃
Storage Temperature Range		-10℃ to 35℃
BMS High Temperature Cut-off		75℃
